What PoolBoss Says
Sand blowing back into a pool from a sand filter has three causes: a cracked lateral, a broken standpipe, or a multiport valve leaking past its spider gasket. Before buying any part, confirm the grit is actually filter media and not plaster dust, then note when it appears.
Sand on the pool floor is one of the few faults where the customer has usually already diagnosed it before you arrive, and usually wrong. They have searched it, found a page telling them the laterals are cracked, and priced a new filter. By the time you are standing on the deck the conversation is about money, not about what actually failed.
The professional answer is a confirmation sequence rather than a guess. First establish that the grit is filter media at all, because on a Sunbelt route it very often is not. Then use when the sand appears to work out which side of the filter is leaking. Only then does it make sense to talk about a part, because the three real causes sit at three very different price points.
At a glance
Key takeaways
- Confirm the grit is actually filter media before quoting anything - rounded uniform grains are silica, angular chalky ones are plaster, and a cartridge or DE filter has no sand to lose.
- Sand arriving continuously while filtering means a cracked lateral or standpipe; sand only on backwash means the multiport spider gasket.
- Grit that clears within 2-3 minutes after a backwash and does not return is residual media in the return lines, not a failed part.
- Timing cannot separate a cracked lateral from a broken standpipe - both need the tank opened, so quote the teardown, not the part.
- A filter passing sand often reads low on pressure, so compare against that pool's own recorded clean baseline rather than a generic number.
- Repair laterals on a tank under 15 years old, since the media is due every 5-7 years anyway; replace the filter once the tank is past that or weeping at the band.
- Vacuum to waste, never through the filter, then refill and retest - an 800-1,200 gallon cleanup moves the chemistry enough to matter.
Why is there sand in my pool from the filter?

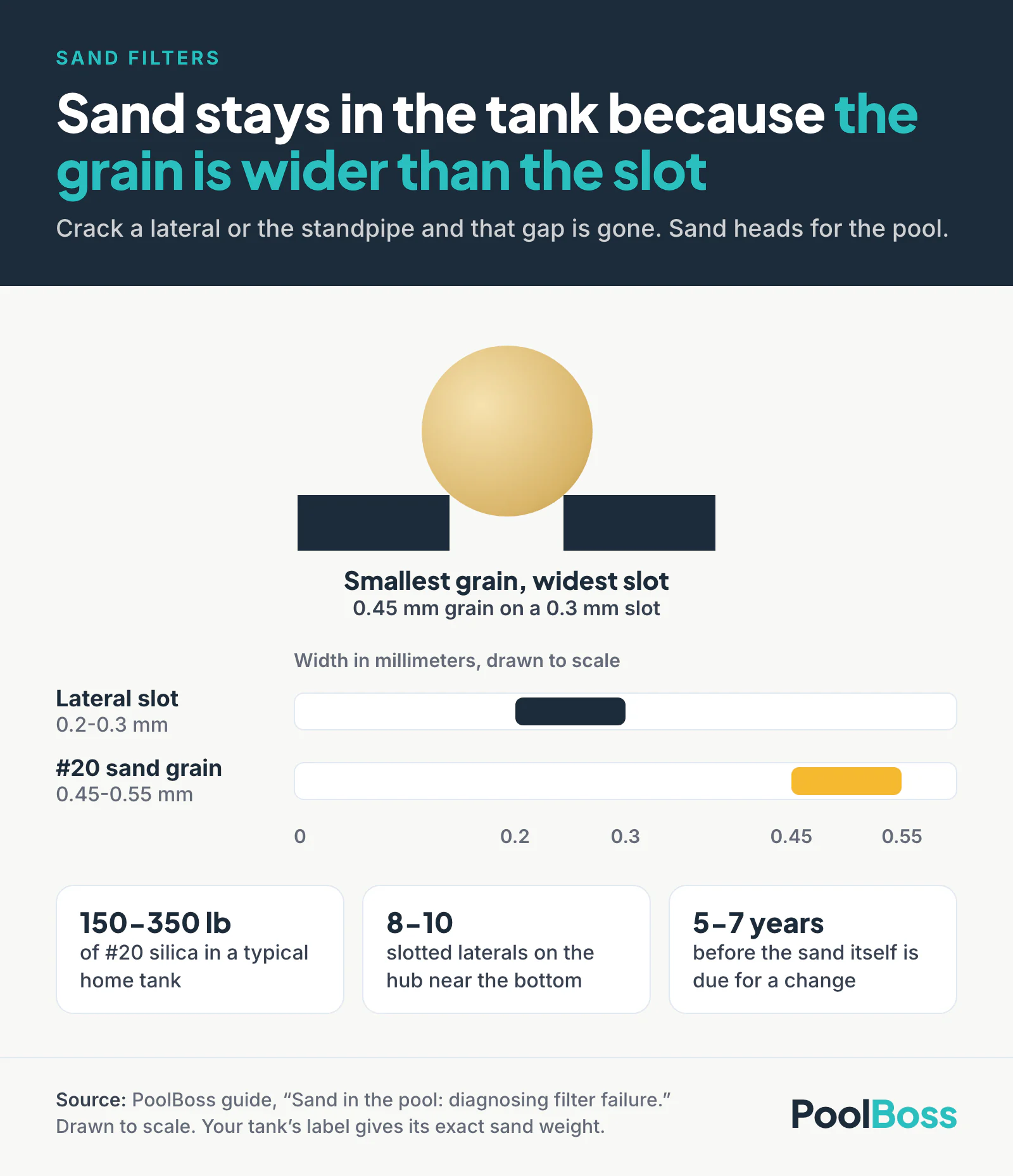

Sand returns to a pool when something lets media cross from the dirty side of the filter to the clean side, and there are only three places that happens. A sand filter holds 150-350 pounds of #20 silica on a typical residential tank, sitting on a hub of 8-10 slotted laterals near the bottom. Those slots run roughly 0.2-0.3 mm wide against a grain size of 0.45-0.55 mm, which is the entire mechanism keeping the sand in the tank. Break that geometry anywhere and media goes out to the returns. It is worth ruling this out early on any pool where the water has gone off, because a filter passing media is not a chemistry problem and no dose will fix it, the same way cleaning the filter on its pressure baseline comes before treating water that will not clear. The three failure points:
- A cracked or unseated lateral. The laterals are brittle plastic fingers that live under a quarter ton of wet sand, and they crack from age, from freeze damage, or from being stood on during a media change. One split lateral is enough to feed a steady trickle of sand into the return line.
- A broken standpipe. The standpipe is the vertical tube running from the multiport valve down to the lateral hub. If it cracks, or if the hub separates from it, sand pours directly into the pipe that carries filtered water back to the pool.
- A failed spider gasket in the multiport valve. This one is not a filter fault at all. The spider gasket seals the channels inside the multiport, and when it hardens or tears, flow crosses between ports - so water carrying fluidized sand can reach the return line during a backwash instead of going to waste.
- What it is almost never: too much sand in the tank, or sand that is simply old. Overfilling causes carryover into the multiport, not a fan of grit on the floor, and worn sand channels and filters poorly rather than escaping.
First rule out that it is not filter sand at all
The most common answer on a desert route is that the grit never came from the filter. Blown-in dust, decomposing plaster, and construction fines from a nearby lot all settle into the same fan shape near a return, and all three get blamed on the filter. Three tests separate them and none of them takes more than a minute.
Rub a pinch between your fingers. Filter media is rounded and uniform, because it is graded silica, and it feels like beach sand. Plaster grit is angular and chalky, it is usually lighter in colour, and it smears rather than rolls. Blown-in dirt is mixed - you will find grains of several sizes and colours in the same pinch, often with organic bits in it. Then look at the pool itself: a resurfaced or newly plastered pool sheds fines for weeks, and a pool downwind of open ground in a dust season collects them all summer.
The fastest test of all is the filter type. A cartridge filter contains no sand, so grit in a pool running a cartridge is definitionally not filter media, and a DE filter sheds white powder rather than granules. If the equipment pad does not have a sand tank on it, the diagnosis is over before it started.
Take a tech running 44 pools around Surprise and Peoria, Arizona. He finds a fan of grit under the return on a 12-year-old sand filter, and the owner has already been told online that she needs a new one. Rubbing it, the grains are rounded and uniform - filter media, not the angular plaster grit he sees on the resurfaced pools two streets over. It shows while the system is filtering rather than only after a backwash, which points at the lateral hub rather than the valve. He vacuums to waste, writes what he found on the pool record so the next visit starts from a fact rather than a memory, and quotes a lateral assembly instead of the filter she was expecting to buy. Getting that call right is worth several hundred dollars to her, and it rests entirely on a pinch of sand between two fingers. It is also why the finding belongs on the record: keeping the visit note and readings on the pool's record is what lets a second tech, or the same tech in six weeks, pick the diagnosis back up instead of starting over.

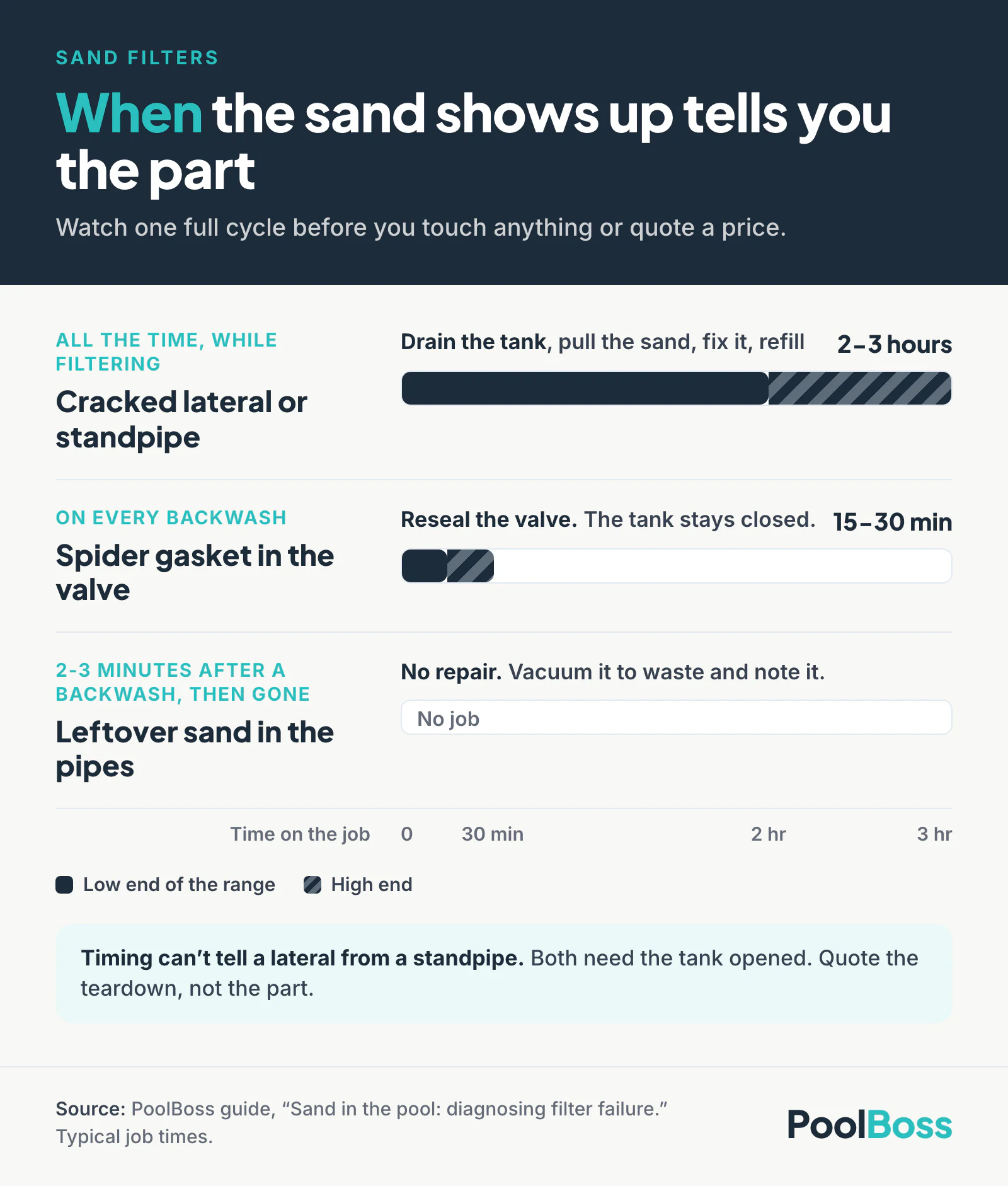

When the sand appears tells you which part failed
Timing is the free diagnostic, and it splits the three causes cleanly. Watch the pool for one full cycle before touching anything, because the answer changes which part you quote and whether the tank has to come apart at all.
Sand arriving continuously while the system is filtering means media is crossing to the clean side inside the tank. That is a lateral or the standpipe, and it will not stop on its own. Sand arriving only in the first two or three minutes after a backwash, then clearing and not coming back, is usually residual media already sitting in the return plumbing being flushed out - a one-off after a media change or a hard backwash, not a failed part. Sand or dirty water pushed into the pool every time you backwash, on a valve that also weeps to waste while filtering, is the spider gasket.
Honesty about the limit of this test is what separates a professional answer from a forum one: timing tells you which side of the filter failed, but it cannot separate a cracked lateral from a broken standpipe. Both sit on the clean side and both produce the same continuous trickle. The only way to know is to pull the multiport, vacuum the sand out of the tank, and look. Plan that as a job rather than promising the customer a part over the phone, because a quote given before the tank is open is a guess wearing a number.
Record the filter pressure while you are there, because a filter passing sand often reads low - media loss and a bypass both reduce restriction. That reading only means something against the pool's own history, which is the argument for capturing filter pressure before and after the service and the action taken at every visit rather than remembering it. A tank that has quietly dropped 4-5 psi below its normal clean baseline over two months has been losing sand for two months.
What each fix costs and whether the filter is worth repairing
The three causes sit at genuinely different tiers of work, which is why confirming the cause before quoting matters so much. The cheapest fix is a valve part and takes minutes. The middle one means emptying and refilling the tank. The most expensive is a new filter, and it is the right call less often than the internet suggests.
Age is the deciding number. A fibreglass or polymer sand tank has a realistic service life of 10-15 years, and the media inside it needs replacing every 5-7 years regardless. Repairing laterals on a tank inside that window is straightforward economics, because the sand is being changed anyway and the labour is the same job. On a tank past 15 years, or one with any weeping at the belly band or the bulkhead, the repair is money spent on a part that is about to be scrapped, and replacement is the honest recommendation.
| What you see | Likely cause | Part | Tier of work |
|---|---|---|---|
| Sand into the pool continuously while filtering | Cracked lateral or separated lateral hub | Lateral assembly plus fresh media | Drain the tank, remove 150-350 lb of sand, replace, refill - typically 2-3 hours |
| Sand while filtering, laterals intact when opened | Cracked standpipe or hub joint | Standpipe and hub, plus fresh media | Same teardown as a lateral job, same 2-3 hours |
| Sand or dirty water into the pool on every backwash | Failed spider gasket in the multiport | Spider gasket, or a replacement valve | Valve top off and reseal - typically 15-30 minutes, tank untouched |
| Grit that clears after 2-3 minutes and does not return | Residual media in the return lines | None | Vacuum it out and note it - no repair |
| Sand plus weeping at the belly band on a 15-year-old tank | Tank at end of life | New filter | Replacement - repairing the internals is money on a scrapped tank |
Getting the sand out without wrecking the equipment you just fixed
Vacuum sand to waste, never through the filter. Running it through a filter that is already passing media puts abrasive silica straight back through the pump and the valve, and on a tank with a broken lateral it simply re-seeds the pool with the same grit an hour later. On a multiport, that means the waste position; on a push-pull valve, the drain position. If the water then stays hazy after the grit is gone, treat it as a separate problem and work through clearing water that stays cloudy after the fix rather than assuming the filter is still failing.
Watch the water level while you do it. A vacuum to waste on a residential pool moves roughly 40-60 gallons a minute, so a 20-minute cleanup can put 800-1,200 gallons down the drain. On a route where you are already topping pools off in July, that is enough of a drop to look like a leak on the next visit if nobody wrote it down, and enough to matter to a customer on a water budget. Refill before you leave and say what you did.
Then retest, because that much fresh water changes the chemistry. Replacing 1,000 gallons on a 15,000-gallon pool is close to 7% of the volume, which is enough to move calcium hardness, cyanuric acid, and alkalinity measurably toward whatever the tap water carries. Correct in the usual order rather than chasing one number, following the order to correct readings in, and log the readings after the refill rather than before, so the pool's history shows the dilution instead of hiding it.
One last thing that saves a callback: brush and vacuum the whole floor, not just the visible fan. Sand settles wherever the return current dies, which on most pools means the deep-end corners and the step treads as well as the obvious cone. A pool that looks clean on the way out but has grit in the corners gets a phone call the next morning saying the problem is back.
FAQ
Frequently asked questions
Can I still run the pump if sand is coming into the pool?
You can, but keep it short and understand what it costs. Silica is abrasive, and circulating it puts grit through the pump impeller, the shaft seal, and the multiport channels, which is how a lateral repair turns into a pump repair. The bigger risk is the heater: sand passing through a heat exchanger scours the tubes and can put pinholes in copper. If the pool has a heater, bypass it or leave it off until the filter is fixed. The practical middle ground on a route is to run the pump only as long as sanitation genuinely requires, usually a few hours a day rather than a full cycle, and to tell the customer plainly that every hour of runtime is moving abrasive through equipment. If the loss is heavy enough to build a visible fan within a day, shut it down and treat the repair as urgent rather than scheduled.
How much sand does a pool filter need, and how often should I change it?
A typical residential tank takes 150-350 pounds of #20 silica sand, and the tank label or the manufacturer's plate gives the exact figure for that model. Do not guess it, and do not round up - overfilling reduces the freeboard the bed needs to expand into during a backwash, which pushes media into the multiport. Media life is 5-7 years in normal residential service. The failure mode is not clogging but wear: the grains erode round and smooth, lose the sharp edges that trap fine debris, and start channelling, so water runs through the same paths instead of the whole bed. The tell is a filter that backwashes normally and still will not hold water clarity, or one whose clean pressure has drifted up over seasons. In hard water or on a pool that has been through repeated algae recovery, expect the shorter end of that range.
Can I vacuum the sand out through the filter if there is no waste setting?
Some valves have no waste position, and on those the honest options are a portable vacuum or a temporary bypass rather than running grit through the tank. A push-pull or slide valve usually has a drain position that does the same job as waste - check the plate before assuming it does not. If neither exists, a battery or venturi vacuum that captures debris into its own bag keeps the sand out of the plumbing entirely, and it is the cleanest answer on a pool with a failing filter. The one thing worth avoiding is vacuuming through a filter that is already passing media, because it re-seeds the pool and puts abrasive through the pump for no benefit. If you have no alternative and the volume is small, vacuum slowly, then backwash immediately afterwards and check the pressure.
Should I move the customer to a cartridge filter instead of repairing the sand filter?
It is a reasonable conversion when the tank is already at end of life, and a hard sell when it is not. A cartridge filters finer, typically down to around 10-15 microns against roughly 20-40 for sand, uses no water to clean because there is no backwash, and removes the lateral and standpipe failure modes entirely. Against that, cartridges are a hands-on maintenance item: elements come out and get rinsed, they need an overnight soak two or three times a season, and they are replaced every 2-3 seasons as a real parts cost. Sand asks less of the tech and more of the water bill. The decision usually turns on the customer rather than the equipment - a water-restricted market or a pool that struggles with clarity argues for cartridge, while a low-touch account on a tight monthly rate is usually better served by replacing sand with sand.
Can a cracked lateral cause cloudy water too?
Yes, and it often shows up as cloudiness before anyone notices grit on the floor. A cracked lateral does two things at once: it lets media out, and it lets water bypass the bed, so a share of the flow returns to the pool unfiltered. That bypass is usually the first symptom, because fine suspended particulate clouds water long before enough sand escapes to be visible. It is why a pool that has gone hazy with chemistry reading perfectly deserves a look at the equipment pad rather than another dose. The confirming detail is pressure: a filter with a bypass reads low or flat against its own clean baseline, whereas a filter that is loaded and struggling reads high. Low pressure plus cloudy water plus normal chemistry is a bypass until proven otherwise, and it points at the tank internals.
How do I explain this to a customer who thinks I caused it?
Lead with the age of the part and show them the grit. Laterals are brittle plastic living under a quarter ton of wet sand, and on a 10-15 year old filter they fail from fatigue on their own schedule - which is why the failure so often surfaces on a routine visit rather than being caused by one. Hand them a pinch of the sand and point out that it is rounded silica rather than plaster, so it came from inside the tank. Then show the pressure history if you have it, because a tank that has been drifting for weeks is visibly not something that happened this morning. The one thing worth being straight about is a backwash: turning a multiport handle with the pump running does tear a spider gasket, and if that is what happened, say so and fix it. Operators who own the small ones keep the accounts where the big ones are not their fault.
